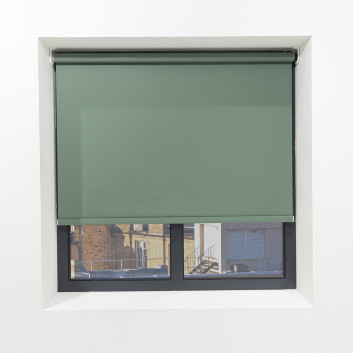

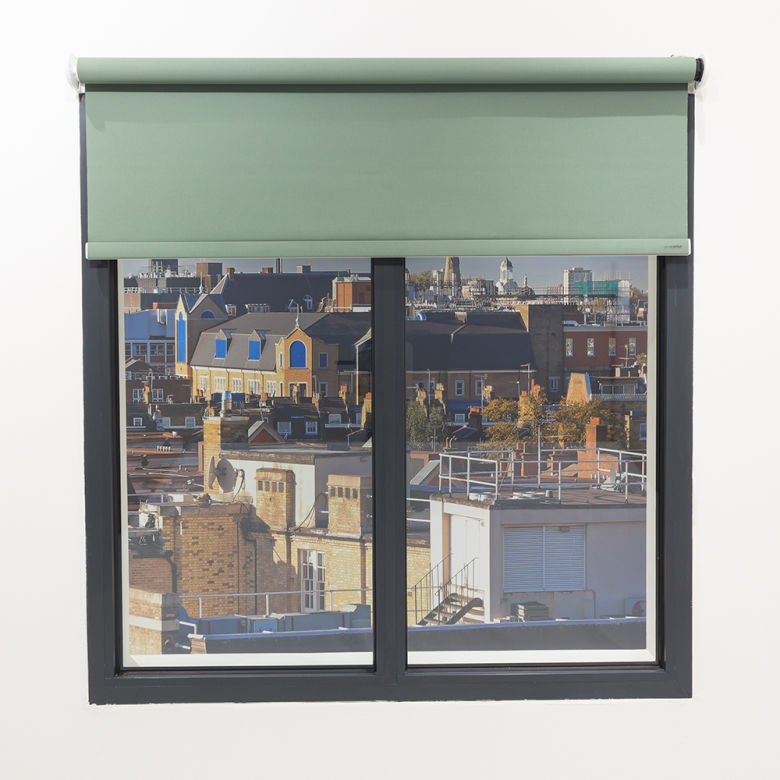

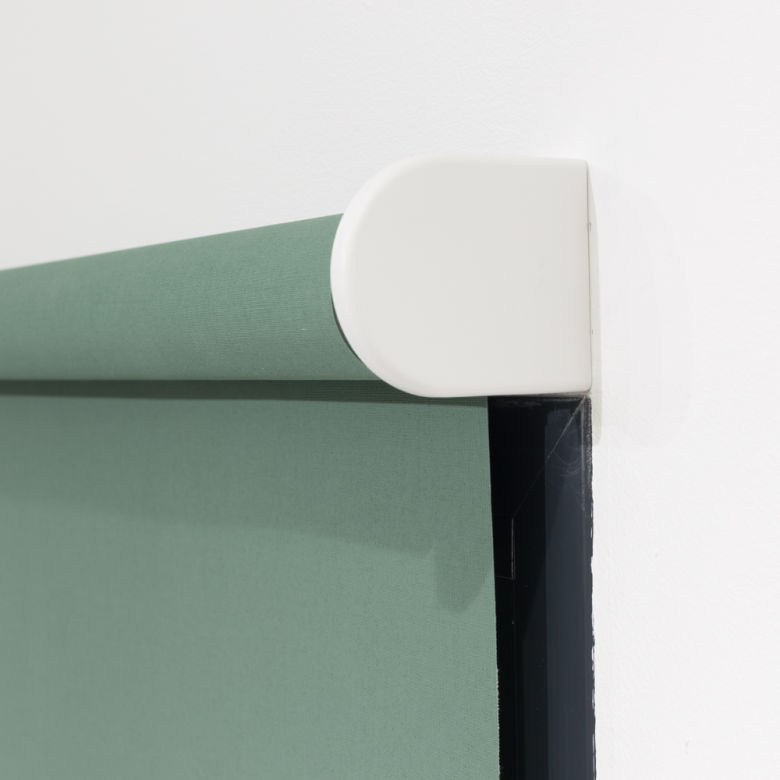

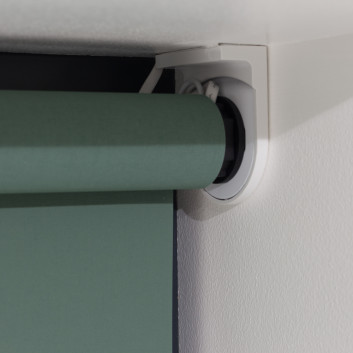

The YewdaleDefiant® R20M electric roller blind with low voltage motor as standard. White metal brackets with plastic covers, for face or top fixing, on 40mm grooved aluminium barrel, housing a 24v DC motor with electronic limit stops and a slow/stop start feature. The motor takes a 230v AC supply and is controlled by a remote switch (not supplied as standard). The fabric is locked into a groove in the barrel, and features white plastic bottom bar as standard. The bottom bar is fabric covered at the front.
A slim, reasonably priced blind with true fingertip control makes the R20M a perfect choice for motorised requirements including home automation. Its quiet and reliable motor housing a receiver and an inbuilt transformer enables a 230v feed to be used, it is controlled by simple remote switches. Housed within the barrel and supported by sturdy, metal brackets with attractive, slim plastic covers. The fabric is locked into a barrel and bottom bar and will give years of trouble-free use.
Fully fabric covered bottom bar; Alternative bottom bars, including fabric covered aluminium, and Tear Drop aluminium in black, silver or white. Group control systems; Wire side-guiding system; White aluminium back bar; Fascia.
YewdaleDefiant® R20M low voltage electric roller blind with low voltage 24v DC motor as manufactured by Yewdale. Slim motor and spring end is housed within aluminium barrel supported by white metal brackets. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 40/45mm aluminium barrel along with white plastic bottom bar.
|Code||Description||Min Width||Max Width||Max Drop||Max m²|
|R20M||R20M Low Voltage Electric 24v DC||500||2650||3350||4.8|
Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.
