Permanent louvre protection at a residential scale
The Warema L60 brings the core capability of the L50 louvred roof system — motorised aluminium louvres, watertight rain protection and integrated drainage — to outdoor spaces where a full-scale L50 installation would be an overspecification. Smaller terraces, covered walkways, side return extensions, garden outbuilding overhangs and compact outdoor dining positions all benefit from permanent motorised louvre protection but typically do not require the span, projection depth or structural scale of the L500. The L60 addresses this precisely. It uses the same louvre rotation principle — from zero degrees fully open through to ninety degrees fully closed and watertight — in a more compact frame profile suited to tighter and smaller-scale architectural positions. Consequently, it is the correct specification wherever the permanent louvre roof concept is right but the L500’s scale is not.
Watertight closure and integrated drainage
When the L60 louvres close to ninety degrees, they form a continuous watertight surface across the full span of the installation. Rainwater collects on the closed louvre surface and drains through integrated channels within the beam and post profiles to drainage outlets at the post positions. No external guttering is required. Furthermore, rain sensor automation triggers louvre closure automatically when rainfall is detected — the outdoor space beneath the L60 transitions from open-sky to fully weatherproof without any input from the occupant. This automatic response to weather conditions is what makes the L60 genuinely different from a pergola with a canopy or a fixed glass roof — it adapts, rather than presenting a fixed static condition to the sky above.
Louvre control and ventilation management
Every L60 installation we supply is motorised as standard. The louvres rotate to any programmed angle between fully open and fully closed via a quiet motor drive. Intermediate positions — partially open for diffused light and ventilation — are achievable and recallable as named scenes via the Warema WMS app. In addition, wind sensors monitor conditions and reposition or close the louvres automatically when wind speed exceeds the set threshold. This ventilation management capability makes the L60 particularly effective on side return positions and covered walkways, where wind channelling between buildings can increase localised wind speed considerably above open-terrace conditions. We set the wind threshold to the specific exposure of each installation during commissioning.
Smart home integration and scheme co-ordination
The L60 operates within the Warema WMS platform alongside every other Warema external shading product — K55 pergola awnings, 55 and 50 projection awnings, external Venetian blinds and the L50 louvred roof. Moreover, it integrates with KNX, Crestron, Control4, Savant and other building management systems via the WMS interface. On properties where the L60 covers a side return or smaller terrace alongside a Warema 55 on the principal terrace and Warema external Venetian blinds on the glazed facade, all systems operate within a single co-ordinated programme responding to the same sensor data simultaneously. As an authorised Warema dealer, we supply, specify and install the L60 across Poole, Sandbanks, Canford Cliffs, Bournemouth and the wider Dorset and South Coast area, with full structural co-ordination, M&E first fix and smart home commissioning at handover.
Key Features
-Compact frame profile — residential scale
-Aluminium louvres — full rotation 0° to 90°
-Fully closed — watertight rain protection
-Fully open — maximum ventilation and sky view
-Any intermediate angle programmable
-Integrated drainage — no external guttering
-Motorised louvre drive — quiet operation
-Rain sensor — automatic louvre closure
-Wind sensor — automatic louvre repositioning
-Warema WMS app and smart home integration
-KNX, Crestron, Control4, Savant compatible
-Suitable for side returns and walkways
-Suitable for small terraces and garden structures
-Extensive RAL powder-coat frame colours
-Frame matched to L500, K55, 550 and 50
-LED lighting integration available
-Freestanding and wall-mounted configurations
-Authorised Warema supply and installation
System: Warema L60 motorised louvred roof — compact permanent overhead structure with motorised aluminium louvre system.

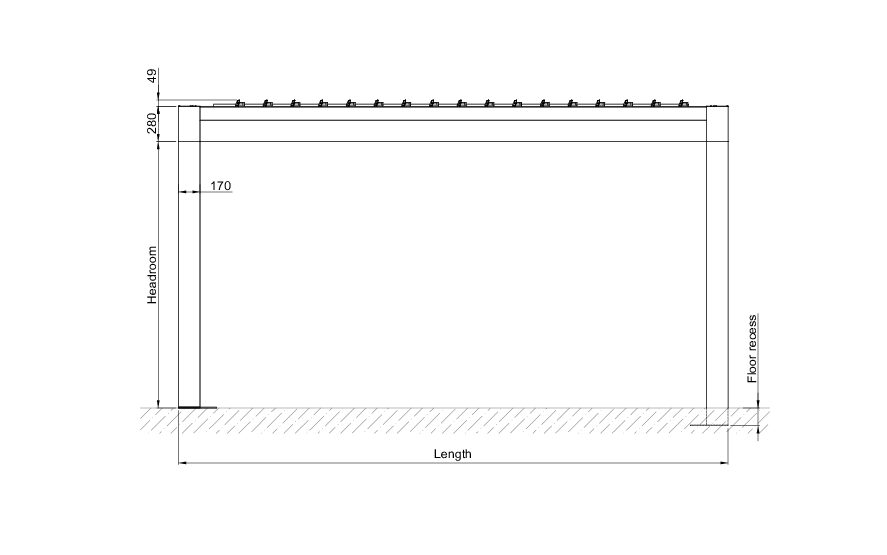

Frame: powder-coated aluminium — compact post and beam profile; slimmer section than L500; suitable for tighter residential and commercial positions. Louvres: precision-extruded aluminium — motorised rotation 0° (fully open) to 90° (fully closed, watertight); any intermediate angle programmable as scene position. Louvre drive: quiet brushless motor — progressive start and stop; bidirectional position feedback to WMS controller. Drainage: integrated rainwater drainage channels within post and beam profiles — rainwater drained to post downpipe outlets at fully closed louvre position; no external guttering required; confirm drainage outlet positions during design stage survey. Rain sensor: integrated — automatic louvre closure on rainfall detection; confirm sensor position with our team. Wind sensor: anemometer — automatic louvre repositioning above set wind speed threshold; threshold set during commissioning to installation-specific exposure; note — side return and walkway positions may experience channelled wind conditions requiring adjusted threshold setting. LED lighting: integrated LED positions within beam profiles available — confirm at design stage. Smart home: Warema WMS platform — Warema app (iOS and Android); remote handset; wall switch; scene programming; group operation; sensor automation. BMS integration: KNX; Crestron; Control4; Savant — confirm protocol and driver at specification stage. Configuration: freestanding (post-mounted) or wall-mounted. Structural: freestanding post foundation assessment recommended — Warema structural loading data provided by our team. Planning note: L60 is a permanent structure and may require planning permission — confirm with local planning authority at design stage. Electrical: 230V mains to motor and lighting positions — cable routes confirmed during pre-installation survey. Suitable applications: residential side return extensions; covered walkways; smaller terraces and garden dining positions; garden outbuilding overhangs; compact commercial outdoor areas. L500 comparison: L60 uses a more compact frame profile suited to smaller-scale positions; L500 is the larger-span specification for principal terraces and commercial installations. Supply and installation available across Poole, Bournemouth, Sandbanks, Canford Cliffs, Christchurch, Salisbury and the wider Dorset, Hampshire and South Coast area. NBS specification text, structural loading data, drainage layout, RAL colour chart and product data sheets available on request from our specification team.
FAQ
What is the Warema L60 louvred roof?
The Warema L60 is a compact motorised louvred roof system providing permanent all-weather overhead protection for smaller terraces, side returns, covered walkways and garden structures. Its precision aluminium louvres rotate from fully open — for maximum ventilation and a clear view of the sky — to fully closed — forming a watertight surface that channels rainwater through integrated drainage within the frame profiles. Any intermediate louvre angle is achievable by motor and recallable as a programmed scene. Rain and wind sensors automate the louvre response to weather conditions. The L60 uses the same louvre principle as the larger Warema L500 in a more compact frame profile suited to smaller and tighter residential installations. We supply and install the Warema L60 across Poole, Sandbanks, Canford Cliffs, Bournemouth and the wider Dorset and South Coast area as an authorised Warema dealer.
What is the difference between the Warema L60 and the Warema L50?
Both the L60 and the L50 are permanent motorised louvred roof systems using the same aluminium louvre rotation principle — from fully open to fully closed and watertight — with integrated drainage and rain and wind sensor automation. The difference is scale and application. The L500 uses a larger frame profile suited to principal terraces, pool structures and commercial outdoor areas where wide spans and deep projections are required. The L60 uses a more compact frame profile specifically designed for smaller-scale residential positions — side returns, covered walkways, compact terraces and garden structure overhangs where the L50 structural scale would be excessive. Both systems are available in the same RAL powder-coat finish range and can be colour-matched on the same property. On a larger residence, the L500 and L60 are often specified together — the L50 covering the principal terrace and the L60 protecting a side return or covered entrance walkway with matched frame finishes throughout.
Is the Warema L60 suitable for a side return extension?
Yes — and the side return position is one of the most common applications for the L60 in residential refurbishment and extension projects. A side return extension typically creates a covered transition zone between the original building and a new rear extension, or a covered outdoor dining or utility area alongside the house. This position often has limited width, restricted headroom and is exposed to channelled wind conditions between buildings. The L60’s compact frame profile fits within the dimensional constraints of most side return positions, and the integrated drainage eliminates the need for external guttering within the narrow space. We note that channelled wind conditions in side return positions can increase localised wind speed considerably — we assess the specific wind exposure during the design stage site visit and set the wind sensor threshold accordingly. Planning permission may also be relevant depending on the extension’s permitted development status — we flag this at the design stage consultation.
Does the Warema L60 provide complete weatherproofing when closed?
Yes. When the L60 louvres are in the fully closed position — rotated to ninety degrees — they form a continuous watertight surface across the full span of the installation. Rainwater collects at the closed louvre surface and drains through channels integrated within the aluminium beam and post profiles to drainage outlets at the post positions. No external guttering is required. Rain sensor automation triggers automatic closure when rainfall is detected, so the transition from open sky to fully weatherproof occurs without any manual intervention. The drainage capacity is engineered to handle the rainfall intensity appropriate for the UK climate at the dimensions of the specific installation. We confirm the drainage layout and outlet positions during the design stage survey.
Can the Warema L60 be integrated with a smart home system?
Yes. The L60 operates within the Warema WMS platform, providing app control on iPhone and Android, scene programming, group operation and sensor-triggered automation as standard. For integration with KNX, Crestron, Control4, Savant and other building management systems, the WMS interface provides the appropriate protocol connection — we confirm the compatible driver and wiring requirements at the specification stage. On properties where the L60 operates alongside other Warema systems — a 55 projection awning on the principal terrace, a K55 pergola awning in the garden or Warema external Venetian blinds on the building facade — all systems are incorporated into a single co-ordinated WMS programme, responding to shared sensor data simultaneously from a single app interface.
Do you install the Warema L60 louvred roof in Poole and across Dorset?
Yes. We are an authorised Warema dealer supplying and installing the full Warema motorised outdoor shading range — including the L60 and L50 louvred roofs — across Poole, Sandbanks, Canford Cliffs, Bournemouth, Christchurch, Salisbury and the wider Dorset, Hampshire and South Coast area. Every L60 project begins at the design stage — we attend site to confirm frame configuration, span, structural requirements, drainage layout, M&E first fix routes, wind exposure assessment for the specific position, planning considerations, frame colour selection and smart home integration. Contact our team to discuss your project at the earliest design stage.
